  • APC Easy Rack PDU, Basic, 0U, 1 Phase, 3.7kW, 230V, 16A, 14 x SCHUKO outlets, IEC60884 SCHUKO inlet

Sorry - this product is no longer available

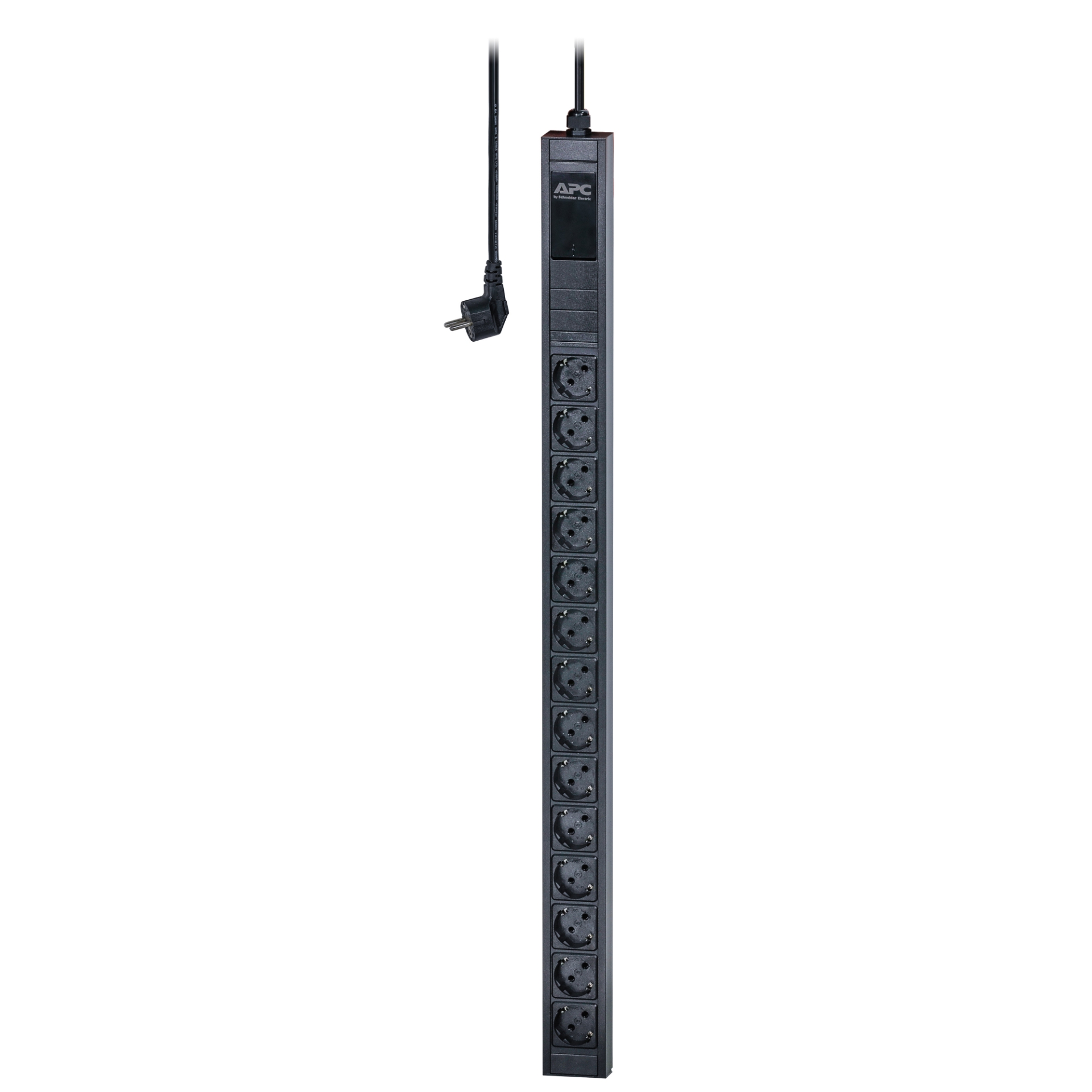

APC Easy Rack PDU, Basic, 0U, 1 Phase, 3.7kW, 230V, 16A, 14 x SCHUKO outlets, IEC60884 SCHUKO inlet

Be the first to review this product
APC Easy Rack PDU, Basic, 0U, 1 Phase, 3.7kW, 230V, 16A, 14 x SCHUKO outlets, IEC60884 SCHUKO inlet. PDU types: Basic, Rack capacity: 0U, Type: Single-phase. AC outlets quantity: 14 AC outlet(s), AC outlet types: Type F, Power plug: Type F. Cable length: 3 m. Nominal input voltage: 200/208/230 V, Maximum current: 16 A, AC input frequency: 50 - 60 Hz. Certification: CE, TUV
Manufacturer: Apc
SKU: EPDU1116B-SCH
Vendor: Aspects
APC Easy Basic Rack PDU EPDU1116B-SCH is Easy-to-install and easy-to-use PDU, making rack power distribution easy. This offers more than a power strip for server rack and network rack solutions. This is Vertical rack mountable PDU in ultra light weight upto 50% weight reduction with Aluminum housing. EPDU1116B-SCH has IEC60884 SCHUKO inlet and 14 x SCHUKO type outlet sockets. This can operate from -5° to +45°C temperation range and comes with 1 year of standard warranty. Vertical mounting capabilities allow users to mount the units in a rack or enclosure without expending valuable rack space The packaging includes installation guide, toolless mounting kit and mounting brackets for quick and easy mounting in the rear of the enclosure. Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Saves time and money during installation by using one branch whip and standard connections. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 17.3kW using a single branch whip.
  • ✔ Legal warranty via the seller
  • ✔ 30 days to change your mind — free returns
  • ✔ Free delivery from €25
€266.72 incl tax
increase decrease
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
APC Easy Basic Rack PDU EPDU1116B-SCH is Easy-to-install and easy-to-use PDU, making rack power distribution easy. This offers more than a power strip for server rack and network rack solutions. This is Vertical rack mountable PDU in ultra light weight upto 50% weight reduction with Aluminum housing. EPDU1116B-SCH has IEC60884 SCHUKO inlet and 14 x SCHUKO type outlet sockets. This can operate from -5° to +45°C temperation range and comes with 1 year of standard warranty. Vertical mounting capabilities allow users to mount the units in a rack or enclosure without expending valuable rack space The packaging includes installation guide, toolless mounting kit and mounting brackets for quick and easy mounting in the rear of the enclosure. Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Saves time and money during installation by using one branch whip and standard connections. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 17.3kW using a single branch whip.
Products specifications
Features
Cable length3 m
Weight & dimensions
Width62 mm
Depth44 mm
Height902 mm
Weight1.94 kg
Logistics data
Total carbon footprint (kg of CO2e)50.03
Packaging data
Package weight2.84 kg
Package width160 mm
Package depth110 mm
Package height1320 mm
Operational conditions
Operating temperature (T-T)-5 - 45 °C
Storage temperature (T-T)-25 - 65 °C
Operating relative humidity (H-H)5 - 95%
Storage relative humidity (H-H)5 - 95%
Operating altitude0 - 3000 m
Non-operating altitude0 - 15000 m
Power
Nominal input voltage200/208/230 V
AC input frequency50 - 60 Hz
Maximum current16 A
Nominal output voltage230 V
Load capacity3680 VA
Maximum input current per phase16 A
Maximum power3680 W
Certificates
CertificationCE, TUV
Ports & interfaces
AC outlets quantity14 AC outlet(s)
Power plugType F
AC outlet typesType F
Design
PDU typesBasic
TypeSingle-phase
Rack capacity0U
MountingVertical
Housing materialAluminium
Product colourBlack
On/off switchNo
Packaging content
ManualYes
*
*
*
