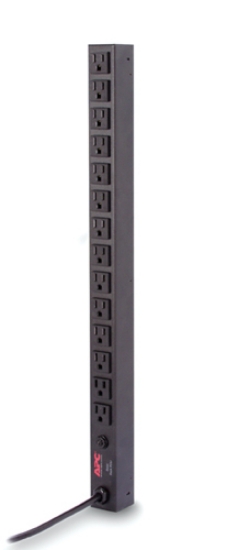

Rack-Mountable
Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most - in the racks near the equipment.
Single input power source
Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.
Products specifications
| Cable length | 3.6 m |
| Width | 44 mm |
| Depth | 44 mm |
| Height | 610 mm |
| Weight | 2.18 kg |
| Weight (imperial) | 2.18 kg (4.8 lbs) |
| Total carbon footprint (kg of CO2e) | 55.22 |
| Package weight | 2.91 kg |
| Package width | 178 mm |
| Package depth | 152 mm |
| Package height | 648 mm |
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -25 - 65 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Nominal input voltage | 120 V |
| AC input frequency | 50 - 60 Hz |
| Nominal output voltage | 120 V |
| Output voltage | 120 V |
| Load capacity | 1800 VA |
| Maximum total current draw per phase | 15 A |
| Certification | cUL/CSA/ETI/UL 1363 |
| Input connection type | NEMA 5-15P |
| Output connections | 14 x NEMA 5-15R |
| Rack capacity | 0U |
| Product colour | Beige |
