Sorry - this product is no longer available

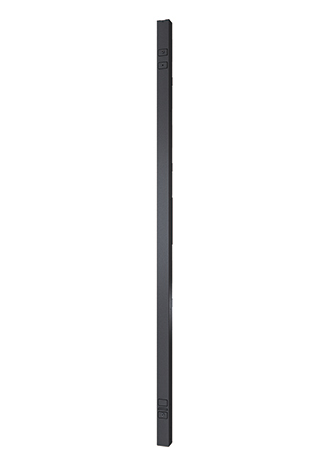

APC AP8453 power distribution unit (PDU) 24 AC outlet(s) 0U Black

Be the first to review this product
APC AP8453. PDU types: Metered, Metered-by-outlet, Rack capacity: 0U, Type: Single-phase. AC outlets quantity: 24 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: IEC309. Cable length: 3.05 m. Monitoring: Current, Power, Voltage. Maximum current: 32 A, AC input frequency: 50 - 60 Hz, Nominal output voltage: 230 V
Manufacturer: Apc
SKU: AP8453
Vendor: Aspects
APC Metered-by-Outlet Rack PDUs offer resilient power distribution and actively measure, display, and log volts, amps, real power (kW) & energy (kWh) at the outlet level. This PDU offers LCD display, real-time remote monitoring and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment. Historical reporting enables users to monitor and optimize energy use, and plan for capacity on a granular level for things like customer power usage. This PDU can operate at up to 60 degrees Celsius and can be accessed, configured, and managed remotely via EcoStruxure IT, Web, SNMP and Command Line Interface. Power is supplied to the PDU at 220-240 volts via IEC 309 2P + E plug with a 3m (10 ft) cord while power comes out at 230 volts through (21) C13 and (3) C19 locking outlets. Daisy-chaining is supported to monitoring up to 4 PDUs from 1 IP address as well as a local USB port for easy local firmware updates. As a Green Premium product, this unit comes with a verified product environment profile, including carbon footprint, scope 3 emissions and end of life instructions.
  • ✔ Legal warranty via the seller
  • ✔ 30 days to change your mind — free returns
  • ✔ Free delivery from €25
€1496.33 incl tax
increase decrease
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
APC Metered-by-Outlet Rack PDUs offer resilient power distribution and actively measure, display, and log volts, amps, real power (kW) & energy (kWh) at the outlet level. This PDU offers LCD display, real-time remote monitoring and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment. Historical reporting enables users to monitor and optimize energy use, and plan for capacity on a granular level for things like customer power usage. This PDU can operate at up to 60 degrees Celsius and can be accessed, configured, and managed remotely via EcoStruxure IT, Web, SNMP and Command Line Interface. Power is supplied to the PDU at 220-240 volts via IEC 309 2P + E plug with a 3m (10 ft) cord while power comes out at 230 volts through (21) C13 and (3) C19 locking outlets. Daisy-chaining is supported to monitoring up to 4 PDUs from 1 IP address as well as a local USB port for easy local firmware updates. As a Green Premium product, this unit comes with a verified product environment profile, including carbon footprint, scope 3 emissions and end of life instructions.
Products specifications
Features
Cable length3.05 m
Weight & dimensions
Width56 mm
Depth51 mm
Height1829 mm
Weight8.21 kg
Logistics data
Total carbon footprint (kg of CO2e)5046.47
Packaging data
Package weight10.5 kg
Package width163 mm
Package depth117 mm
Package height2037 mm
Operational conditions
Operating temperature (T-T)-5 - 45 °C
Storage temperature (T-T)-25 - 65 °C
Operating relative humidity (H-H)5 - 95%
Storage relative humidity (H-H)5 - 95%
Operating altitude0 - 3000 m
Power
AC input frequency50 - 60 Hz
Maximum current32 A
Nominal output voltage230 V
Load capacity7680 VA
Maximum input current per phase32 A
Maximum total current draw per phase32 A
Maximum power7680 W
Certificates
Compliance certificatesRoHS
CertificationEN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, VDE
Management features
MonitoringCurrent, Power, Voltage
Ports & interfaces
AC outlets quantity24 AC outlet(s)
Power plugIEC309
AC outlet typesC13 coupler, C19 coupler
Design
PDU typesMetered, Metered-by-outlet
TypeSingle-phase
Rack capacity0U
MountingVertical
Product colourBlack
*
*
*
Products specifications
Features
Cable length3.05 m
Weight & dimensions
Width56 mm
Depth51 mm
Height1829 mm
Weight8.21 kg
Logistics data
Total carbon footprint (kg of CO2e)5046.47
Packaging data
Package weight10.5 kg
Package width163 mm
Package depth117 mm
Package height2037 mm
Operational conditions
Operating temperature (T-T)-5 - 45 °C
Storage temperature (T-T)-25 - 65 °C
Operating relative humidity (H-H)5 - 95%
Storage relative humidity (H-H)5 - 95%
Operating altitude0 - 3000 m
Power
AC input frequency50 - 60 Hz
Maximum current32 A
Nominal output voltage230 V
Load capacity7680 VA
Maximum input current per phase32 A
Maximum total current draw per phase32 A
Maximum power7680 W
Certificates
Compliance certificatesRoHS
CertificationEN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, VDE
Management features
MonitoringCurrent, Power, Voltage
Ports & interfaces
AC outlets quantity24 AC outlet(s)
Power plugIEC309
AC outlet typesC13 coupler, C19 coupler
Design
PDU typesMetered, Metered-by-outlet
TypeSingle-phase
Rack capacity0U
MountingVertical
Product colourBlack
