Sorry - this product is no longer available

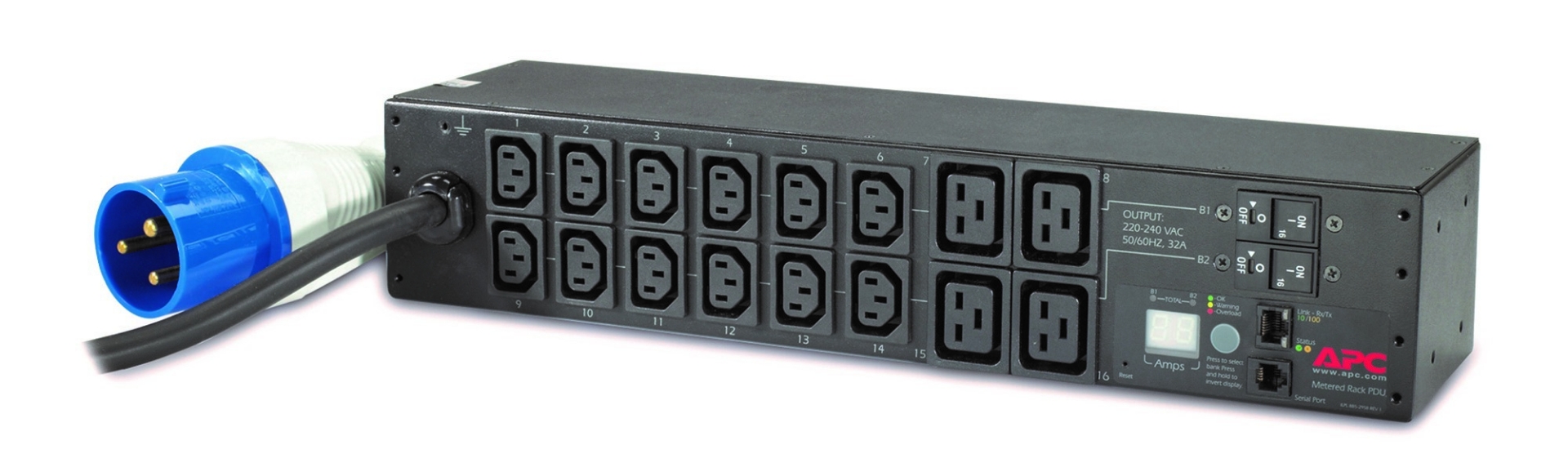

APC AP7822B power distribution unit (PDU) 16 AC outlet(s) 2U Black

Be the first to review this product
APC AP7822B. PDU types: Metered, Rack capacity: 2U, Type: Single-phase. AC outlets quantity: 16 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: IEC309. Cable length: 3.66 m. Monitoring: Current, Power, Voltage. Nominal input voltage: 208-230 V, Maximum current: 32 A, AC input frequency: 50 - 60 Hz
Manufacturer: Apc
SKU: AP7822B
Vendor: Aspects
APC Metered Rack PDUs offer resilient power distribution and actively measure, display, and log amperage to support real-time monitoring and historical reporting. This PDU remote monitoring and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment. The historical reporting enables users to optimize energy use and plan for capacity with confidence. This PDU can operate at up to 60 degrees Celsius and can be accessed, configured, and managed remotely via EcoStruxure IT, Web, SNMP and Command Line Interface. Power is supplied to the PDU at 200-230 volts via IEC 309 plug with a 3.6m (11 ft) cord while power comes out at 230 volts through (36) IEC 320 C13 and (6) IEC 320 C19 outlets. As a Green Premium product, this unit comes with a verified product environment profile, including carbon footprint, scope 3 emissions and end of life instructions.
  • ✔ Legal warranty via the seller
  • ✔ 30 days to change your mind — free returns
  • ✔ Free delivery from €25
€1059.42 incl tax
increase decrease
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
APC Metered Rack PDUs offer resilient power distribution and actively measure, display, and log amperage to support real-time monitoring and historical reporting. This PDU remote monitoring and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment. The historical reporting enables users to optimize energy use and plan for capacity with confidence. This PDU can operate at up to 60 degrees Celsius and can be accessed, configured, and managed remotely via EcoStruxure IT, Web, SNMP and Command Line Interface. Power is supplied to the PDU at 200-230 volts via IEC 309 plug with a 3.6m (11 ft) cord while power comes out at 230 volts through (36) IEC 320 C13 and (6) IEC 320 C19 outlets. As a Green Premium product, this unit comes with a verified product environment profile, including carbon footprint, scope 3 emissions and end of life instructions.
Products specifications
Features
LED indicatorsYes
Cable length3.66 m
Weight & dimensions
Width444 mm
Depth112 mm
Height88 mm
Weight3.36 kg
Logistics data
Total carbon footprint (kg of CO2e)8952.07
Packaging data
Package weight5.41 kg
Package width508 mm
Package depth368 mm
Package height140 mm
Operational conditions
Operating temperature (T-T)-5 - 45 °C
Storage temperature (T-T)-25 - 65 °C
Operating relative humidity (H-H)5 - 95%
Storage relative humidity (H-H)5 - 95%
Power
Nominal input voltage208-230 V
AC input frequency50 - 60 Hz
Maximum current32 A
Load capacity7680 VA
Maximum input current per phase32 A
Maximum total current draw per phase32 A
Power protection featuresOverload
Maximum power7680 W
Certificates
Compliance certificatesRoHS
CertificationC-tick, CE, FCC 15 A, GOST, ICES-003, IRAM, MIC, VDE, VCCI
Management features
MonitoringCurrent, Power, Voltage
Ports & interfaces
AC outlets quantity16 AC outlet(s)
Power plugIEC309
AC outlet typesC13 coupler, C19 coupler
Input connection typeIEC 309 32A 2P+E
Output connections12 x C13 4 x C19
Design
PDU typesMetered
TypeSingle-phase
Rack capacity2U
MountingHorizontal/Vertical
Product colourBlack
On/off switchYes
*
*
*
Products specifications
Features
LED indicatorsYes
Cable length3.66 m
Weight & dimensions
Width444 mm
Depth112 mm
Height88 mm
Weight3.36 kg
Logistics data
Total carbon footprint (kg of CO2e)8952.07
Packaging data
Package weight5.41 kg
Package width508 mm
Package depth368 mm
Package height140 mm
Operational conditions
Operating temperature (T-T)-5 - 45 °C
Storage temperature (T-T)-25 - 65 °C
Operating relative humidity (H-H)5 - 95%
Storage relative humidity (H-H)5 - 95%
Power
Nominal input voltage208-230 V
AC input frequency50 - 60 Hz
Maximum current32 A
Load capacity7680 VA
Maximum input current per phase32 A
Maximum total current draw per phase32 A
Power protection featuresOverload
Maximum power7680 W
Certificates
Compliance certificatesRoHS
CertificationC-tick, CE, FCC 15 A, GOST, ICES-003, IRAM, MIC, VDE, VCCI
Management features
MonitoringCurrent, Power, Voltage
Ports & interfaces
AC outlets quantity16 AC outlet(s)
Power plugIEC309
AC outlet typesC13 coupler, C19 coupler
Input connection typeIEC 309 32A 2P+E
Output connections12 x C13 4 x C19
Design
PDU typesMetered
TypeSingle-phase
Rack capacity2U
MountingHorizontal/Vertical
Product colourBlack
On/off switchYes
