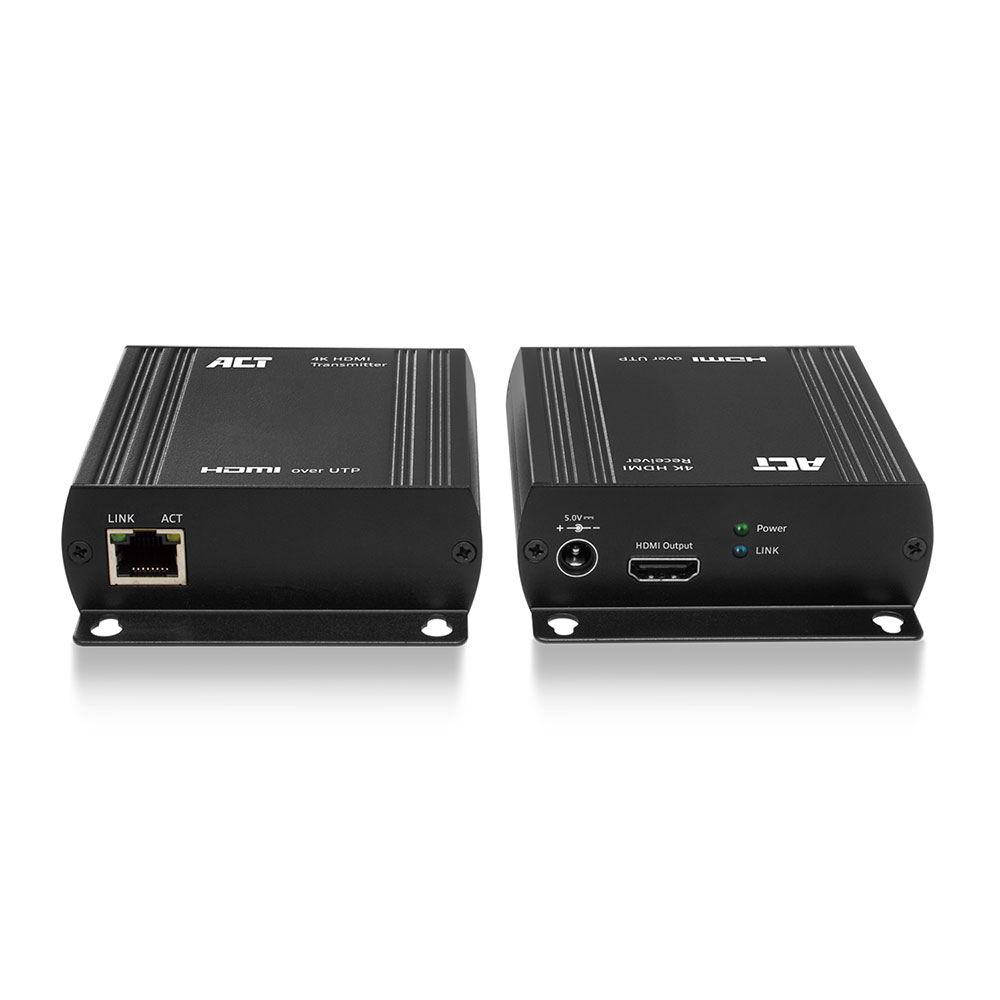

The AC7870 4K HDMI extender kit allows you to extend a 4K HDMI signal up to 100 meters with a maximum resolution of 4K @ 30Hz. The Extender kit contains a transmitter and a receiver to connect with HDMI cables to a source device and a monitor. Use one single CAT UTP cable up to 100 meters to connect the transmitter with the receiver. The set has a solid aluminium housing with integrated mounting bracket.
Display images up to 100 meters from a source device
The AC7870 extends the HDMI signal with zero latency over a distance up to 100 meters with a resolution of 4K. The Extender Set has a solid metal housing with integrated mounting brackets. Use the optional AC7871 Chainable Receiver to connect more monitors. It is possible to connect up to 250 receivers.
Connecting the devices
Connect the transmitter with an HDMI High Speed cable to an HDMI source and connect the receiver to the monitor with an HDMI High Speed cable. The transmitter and receiver are connected with one single CAT UTP cable up to 100 meters. Both the transmitter and the receiver come with an additional power adapter.
Products specifications
| Type | AV transmitter & receiver |
| Maximum resolution | 3840 x 2160 pixels |
| Cable types supported | Cat5e |
| Maximum transfer distance | 100 m |
| Maximum refresh rate | 60 Hz |
| Extended display identification data (EDID) | Yes |
| LED indicators | Yes |
| Supported video modes | 1080p, 2160p |
| Audio formats supported | LPCM |
| HDCP | Yes |
| HDCP version | 1.4 |
| Product colour | Black |
| Width | 212 mm |
| Depth | 154 mm |
| Height | 103 mm |
| Weight | 900 g |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Operating voltage | 5 V |
| Input current | 0.5 A |
| Output current | 2 A |
| External power adapter | Yes |
| Connectivity technology | Wired |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| Number of HDMI outputs | 1 |
| Video in | 1 |
| Video out | 1 |
| DC-in jack | Yes |
| AC adapter included | Yes |
