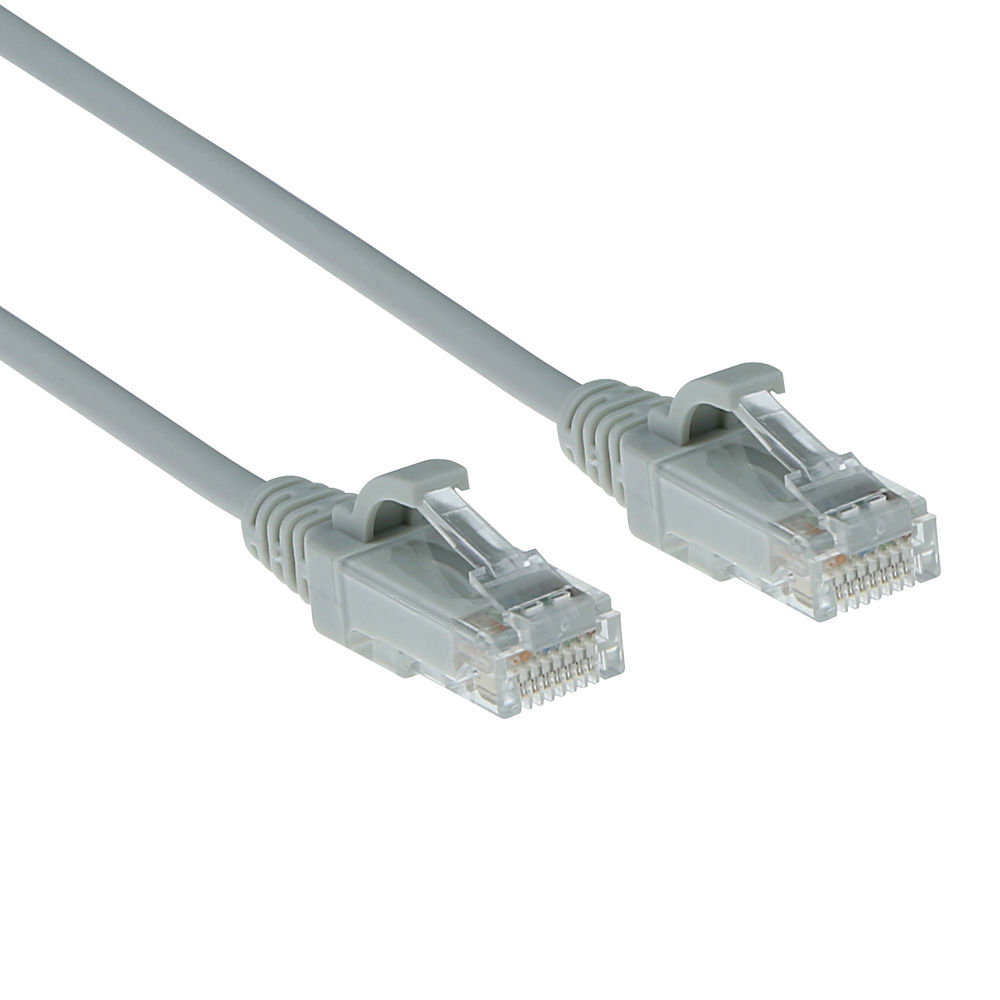

CAT6 U/UTP slimline datacenter ethernet cables are smaller in diameter (3.8mm vs 5.9mm) than regular CAT 6 patch cords and the bending radius is lower in compare with regular patchcords. All this results in a better airflow in the cabinet.
Altough ISO/IEC and the TIA standards describe the use of patch cords between 22 and 26 AWG it's possible to use 28 AWG patchcables but this will result in a higher attenuation, particularly at higher frequencies.
ACT therefore recommends a shorter permanent link length than with regular 24 AWG patchcords to accommodate this higher attenuation.
ACT advise a maximum bundle size of 24 cables in PoE applications to assist in limiting the temperature increases in the cables associated with delivering PoE deployments. Current standards (ANSI TSB-184-A)
work limits the maximum temperature increase to less than 15 degrees Celsius above ambient for the centre cable in a bundle.
Products specifications
| Product colour | Grey |
| Cable length | 0.5 m |
| Cable standard | Cat6 |
| Cable shielding | U/UTP (UTP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Connector contacts plating | Gold |
| Conductor material | Copper |
| AWG wire size | 28 |
| Frequency | 250 MHz |
| Outer diameter | 3.8 mm |
| Harmonized System (HS) code | 84733080 |
| Operating temperature (T-T) | -20 - 60 °C |
