Share a mouse, keyboard, USB 5Gbps hub, audio output device, and 4K 60Hz DisplayPort display between four DisplayPort-enabled computers

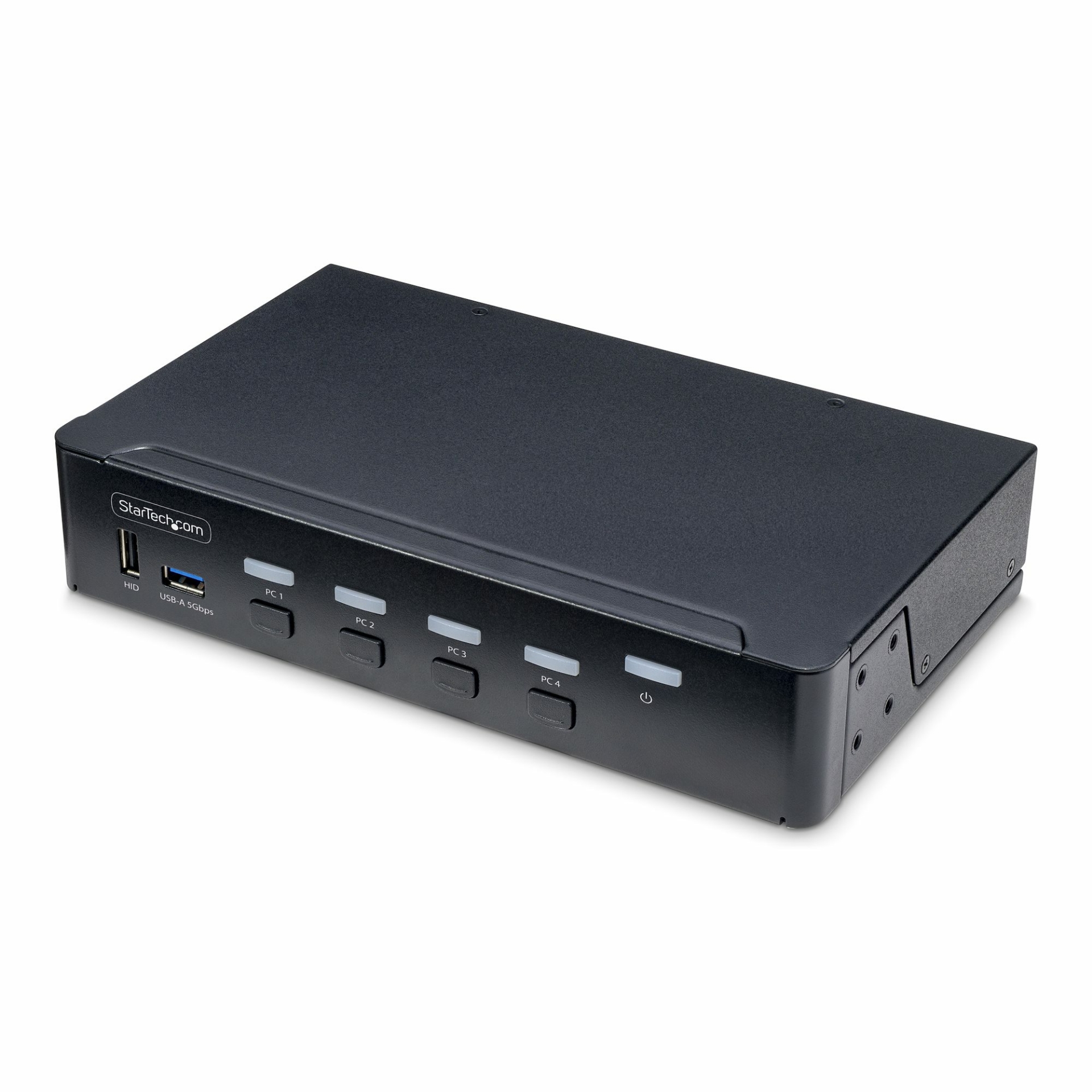

This DisplayPort KVM Switch enables users to switch between four desktops equipped with USB-A and DisplayPort. It facilitates sharing a 4K 60Hz DisplayPort monitor, a keyboard, mouse, two USB 5Gbps devices, a stereo audio output device, and four USB 2.0 devices.
High-Resolution 4K 60Hz Video
This KVM supports resolutions up to 4K 60Hz, making it ideal for applications such as CAD/CAM, video editing, and content creation. In addition, its support for High Dynamic Range (HDR) enhances contrast, brightness, color, and overall vibrancy.
Customizable Switching
This universal KVM switch offers hotkey and push-button switching. Hotkeys allow independent switching of audio and video, enabling audio playback from one computer while controlling another. An audible buzzer confirms hotkey inputs, and LEDs provide visual status feedback for the selected host.
Universal Compatibility
The TAA-compliant KVM Switch offers universal compatibility and works with all operating systems, including Windows, macOS, ChromeOS, and Linux. The KVM provides BIOS/UEFI control and is compatible with all hardware platforms, including Intel, AMD, and Apple Silicon (M1/M2/M3).
Reliable Performance
The rugged metal case helps prevent electromagnetic interference (EMI). 8kV Air/6kV Contact ESD protection enhances the reliability and longevity of the KVM. The included set of rubber feet protect the work surface from scratches and keep KVM in place during operation.
The StarTech.com Advantage
This DisplayPort KVM Switch enables users to switch between four desktops equipped with USB-A and DisplayPort. It facilitates sharing a 4K 60Hz DisplayPort monitor, a keyboard, mouse, two USB 5Gbps devices, a stereo audio output device, and four USB 2.0 devices.
High-Resolution 4K 60Hz Video
This KVM supports resolutions up to 4K 60Hz, making it ideal for applications such as CAD/CAM, video editing, and content creation. In addition, its support for High Dynamic Range (HDR) enhances contrast, brightness, color, and overall vibrancy.
Customizable Switching
This universal KVM switch offers hotkey and push-button switching. Hotkeys allow independent switching of audio and video, enabling audio playback from one computer while controlling another. An audible buzzer confirms hotkey inputs, and LEDs provide visual status feedback for the selected host.
Universal Compatibility
The TAA-compliant KVM Switch offers universal compatibility and works with all operating systems, including Windows, macOS, ChromeOS, and Linux. The KVM provides BIOS/UEFI control and is compatible with all hardware platforms, including Intel, AMD, and Apple Silicon (M1/M2/M3).
Reliable Performance
The rugged metal case helps prevent electromagnetic interference (EMI). 8kV Air/6kV Contact ESD protection enhances the reliability and longevity of the KVM. The included set of rubber feet protect the work surface from scratches and keep KVM in place during operation.
The StarTech.com Advantage
Products specifications
| Weight & dimensions | |
| Width | 130 mm |
| Depth | 220 mm |
| Height | 44 mm |
| Weight | 1 kg |
| Other features | |
| Display resolution at frequency | 3840x2160 @ 60hz 3840x2160 @ 30hz 2560x1600 @ 60hz 2560x1600 @ 30hz 2560x1440 @ 60hz 2048x1536 @ 60hz 2048x1536 @ 30hz 1920x1440 @ 60hz 1920x1200 @ 60hz 1920x1080 @ 60hz 1680x1050 @ 60hz 1600x1200 @ 60hz 1600x1024 @ 60hz 1600x900 @ 60hz 1440x1080 @ 60hz 1366x768 @ 60hz 1360x768 @ 60hz 1280x1024 @ 60hz 1280x960 @ 60hz 1280x800 @ 60hz 1280x768 @ 60hz 1280x720 @ 60hz 1176x664 @ 60hz 1152x864 @ 60hz 1024x768 @ 60hz 800x600 @ 60hz |
| Colour depth | 10 bit |
| IP control | No |
| Logistics data | |
| Master (outer) case width | 545 mm |
| Master (outer) case length | 433 mm |
| Master (outer) case height | 258 mm |
| Products per master (outer) case | 6 pc(s) |
| Packaging data | |
| Package width | 212 mm |
| Package depth | 410 mm |
| Package height | 87 mm |
| Package weight | 1.2 kg |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Power | |
| Power source | DC |
| Input voltage | 100 - 240, 12 V |
| Input current | 1 A |
| Output current | 3 A |
| Power consumption (typical) | 36 W |
| Power plug type | Type M |
| Compatible power plug types | AU, EU, UK, US |
| Ports & interfaces | |
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| DisplayPorts quantity | 4 |
| DisplayPort version | 1.2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 4 |
| Console ports | 3.5mm headphone, DisplayPort, USB A |
| Console USB ports quantity | 4 |
| Console DisplayPorts ports quantity | 1 |
| USB hub | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| Audio connections | Yes |
| Headphone outputs | 4 |
| DC-in jack | Yes |
| Design | |
| Rack mounting | Yes |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Yes |
| Push button | Yes |
| Hot keys | Yes |
| Mean time between failures (MTBF) | 130000 h |
| Performance | |
| HD type | 4K Ultra HD |
| Maximum resolution | 4096 x 2160 pixels |
| Data transfer rate (max) | 5 Gbit/s |
| Scan interval | 3,8,15,30 s |
| HDCP | Yes |
| Plug and Play | Yes |
| Chipset | GL3523 |
| Audio channels | 2.0 |
| HDCP version | 1.4 |
| Display | |
| Built-in display | No |
| On Screen Display (OSD) | No |
| Packaging content | |
| Quick installation guide | Yes |
| Rubber feet | Yes |
| Sustainability | |
| Sustainability compliance | Yes |
| Compliance certificates | RoHS, Trade Agreements Act (TAA) |
*
*
*
