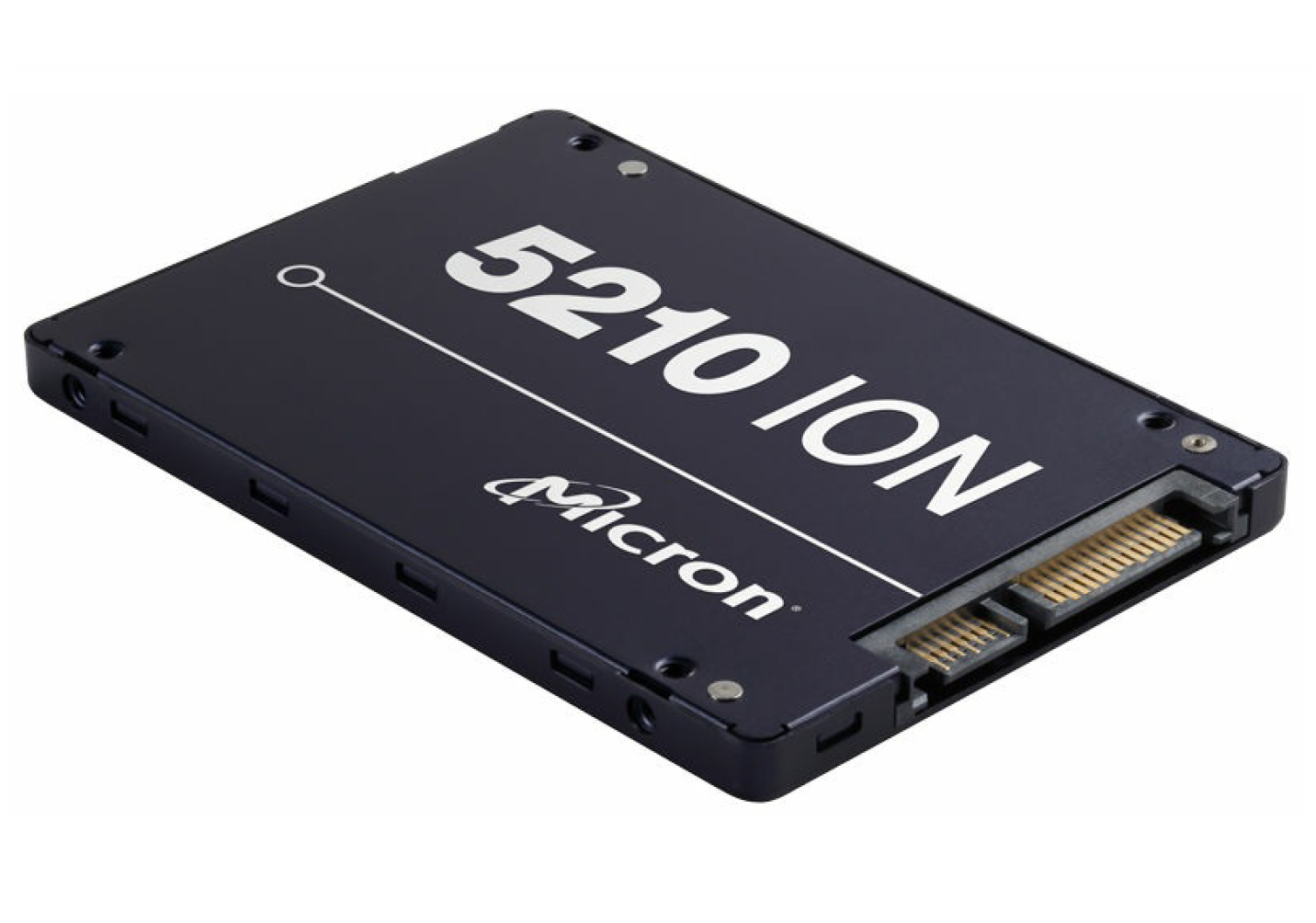

The 5210 Entry SATA QLC solid-state drives (SSDs) are low-cost SSDs for ThinkSystem servers. The drives use Micron 64-layer 3D QLC NAND flash memory technology with a SATA 6Gbps interface and provide an affordable solution for large-capacity sequential read-intensive applications such as AI and machine learning data lakes, real-time analytics, and big data.
This product guide provides essential presales information to understand the 5210 Entry SSD offerings, their key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SSDs and consider their use in IT solutions.
Products specifications
| Security algorithms | 256-bit AES |
| SSD capacity | 3.84 TB |
| SSD form factor | 2.5" |
| Interface | Serial ATA III |
| NVMe | No |
| Memory type | QLC 3D NAND |
| Component for | Server/workstation |
| Hardware encryption | Yes |
| Data transfer rate | 6 Gbit/s |
| Read speed | 540 MB/s |
| Write speed | 265 MB/s |
| Random read (4KB) | 83000 IOPS |
| Random write (4KB) | 2000 IOPS |
| Read latency | 500 µs |
| Write latency | 530 µs |
| Hot-Plug support | Yes |
| Uncorrectable Bit Error Rate (UBER) | < 1 per 10^17 bits read |
| Mean time between failures (MTBF) | 2000000 h |
| Width | 69.8 mm |
| Depth | 100.5 mm |
| Height | 7 mm |
| Weight | 70 g |
| Compatible products | ThinkSystem |
| Harmonized System (HS) code | 84717070 |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Non-operating vibration | 3.13 G |
| Non-operating shock | 1500 G |
| Power consumption (read) | 2.8 W |
| Power consumption (write) | 6.3 W |
| Power consumption (idle) | 1.5 W |
