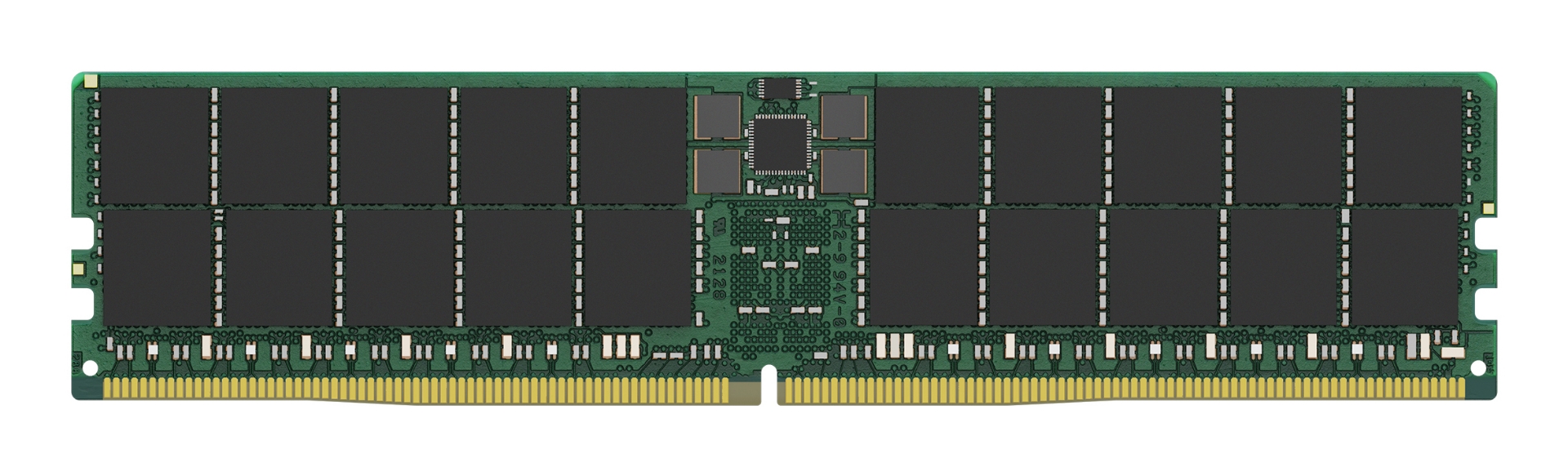

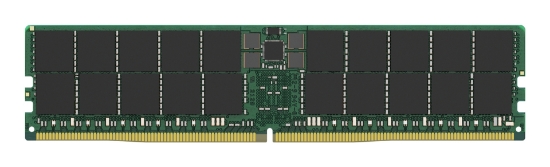

Kingston Technology KSM64R52BD4-128MB memory module 128 GB 1 x 128 GB DDR5 6400 MT/s

Kingston Technology KSM64R52BD4-128MB. Component for: PC/Server, Internal memory: 128 GB, Memory layout (modules x size): 1 x 128 GB, Internal memory type: DDR5, Memory form factor: 288-pin DIMM, CAS latency: 52
Manufacturer: Kingston
SKU: KSM64R52BD4-128MB
Vendor: Aspects
Kingston's KSM64R52BD4-128MB is a 16G x 80-bit (128GB) DDR5-6400 CL52 SDRAM (Synchronous DRAM), 2Rx4, ECC, memory module, based on forty 8G x 4-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-6400 timing of 52-52-52 at 1.1V. Each 288-pin DIMM uses gold contact fingers.
  • ✔ Legal warranty via the seller
  • ✔ 30 days to change your mind — free returns
  • ✔ Free delivery from €25
€1285.41 incl tax
Lowest price in the last 30 days: $1,274.43
increase decrease
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Kingston's KSM64R52BD4-128MB is a 16G x 80-bit (128GB) DDR5-6400 CL52 SDRAM (Synchronous DRAM), 2Rx4, ECC, memory module, based on forty 8G x 4-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-6400 timing of 52-52-52 at 1.1V. Each 288-pin DIMM uses gold contact fingers.
Products specifications
Features
Buffered memory typeRegistered (buffered)
On-Die ECCYes
CAS latency52
Internal memory128 GB
Memory layout (modules x size)1 x 128 GB
Internal memory typeDDR5
Memory data transfer rate6400 MT/s
Component forPC/Server
Memory form factor288-pin DIMM
ECCNo
Memory ranking2
Memory voltage1.1 V
Module configuration16384M x 80
Row cycle time48 ns
Refresh row cycle time295 ns
Row active time32 ns
SPD profileYes
Programming power voltage (VPP)1.8 V
Lead platingGold
JEDEC standardYes
Weight & dimensions
Width133.3 mm
Height31.2 mm
Operational conditions
Operating temperature (T-T)0 - 95 °C
Storage temperature (T-T)-55 - 100 °C
Technical details
Compliance certificatesRoHS
Sustainability
Doesn't containHalogen
*
*
*
