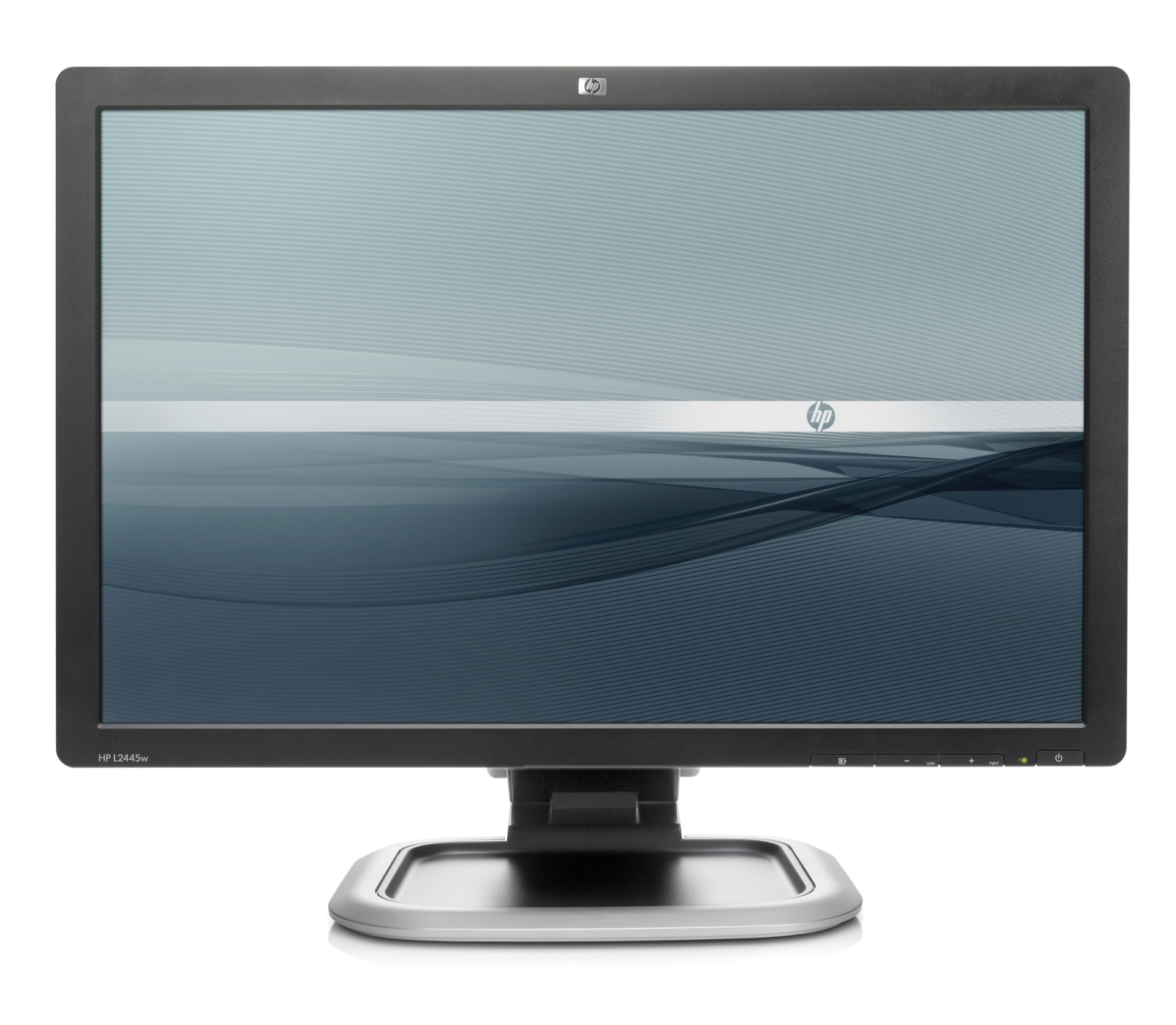

The HP L2445w 24-inch Widescreen LCD Monitor offers advanced performance, user comfort, and connectivity in an extra-large 24-inch diagonal wide-aspect screen that enables crisp, clear views of all your work—without toggling between windows.
Features
- Latest technology: enjoy high resolution viewing with 1000:1 contrast ratio, sharp resolutions to 1920 x 1200, and fast 5 ms response time. The built-in USB hub quickly connects to peripherals. Digital inputs with HDCP support encrypted data content.
- Adjustable user comfort: enable comfortable viewing with adjustable swivel, tilt, and pivot settings. The low-point height-adjustment setting lets you position the monitor’s lower bezel flush with the desk.
- Smart software: help protect against image retention and reduce energy costs with HP Display LiteSaver, which allows prescheduled Sleep mode. Adjust monitor settings and enable theft deterrence through the connected PC with HP Display Assistant.
- Easy set up and use: customize the display settings with a wide range of icon-based on-screen display (OSD) controls. Disable the green power LED to minimize distractions, and the on/off button to prevent users from turning off the monitor.
- Designed with the environment in mind: this monitor meets stringent worldwide environmental regulatory standards, is ENERGY STAR® qualified, and received a Silver rating from the Electronic Products Environmental Assessment Tool (EPEAT™).
Features
- Latest technology: enjoy high resolution viewing with 1000:1 contrast ratio, sharp resolutions to 1920 x 1200, and fast 5 ms response time. The built-in USB hub quickly connects to peripherals. Digital inputs with HDCP support encrypted data content.
- Adjustable user comfort: enable comfortable viewing with adjustable swivel, tilt, and pivot settings. The low-point height-adjustment setting lets you position the monitor’s lower bezel flush with the desk.
- Smart software: help protect against image retention and reduce energy costs with HP Display LiteSaver, which allows prescheduled Sleep mode. Adjust monitor settings and enable theft deterrence through the connected PC with HP Display Assistant.
- Easy set up and use: customize the display settings with a wide range of icon-based on-screen display (OSD) controls. Disable the green power LED to minimize distractions, and the on/off button to prevent users from turning off the monitor.
- Designed with the environment in mind: this monitor meets stringent worldwide environmental regulatory standards, is ENERGY STAR® qualified, and received a Silver rating from the Electronic Products Environmental Assessment Tool (EPEAT™).
Products specifications
| Weight & dimensions | |
| Width (with stand) | 556 mm |
| Depth (with stand) | 253 mm |
| Height (with stand) | 521 mm |
| Width (without stand) | 565 mm |
| Depth (without stand) | 83 mm |
| Height (without stand) | 421 mm |
| Weight (without stand) | 9.8 kg |
| Other features | |
| Country of origin | China |
| Display | LCD |
| TV tuner integrated | No |
| Package dimensions (WxDxH) | 672 x 464 x 352 mm |
| Dimensions (W x D x H) (imperial) | 565.4 x 301 x 526.8 mm (22.3 x 11.8 x 20.7") |
| Power requirements | 100 - 240 V, 50 / 60 Hz |
| Security features | Kensington Lock-ready |
| Maximum resolution | 1920 x 1200 pixels |
| Video Dot Rate | 200 MHz |
| Display resolution at frequency | Preset VESA Graphic Modes (non-interlaced): 640 x 480 @ 60 Hz and 75 Hz, 800 x 600 @ 60 Hz and 75 Hz, 1024 x 768 @ 60 Hz and 75 Hz, 1280 x 960 @ 60 Hz, 1280 x 1024 @ 60 Hz and 75 Hz, 1440 x 900 @ 60 Hz, 1600 x 1000 @ 60 Hz, 1680 x 1050 @ 60 Hz, 1920 x 1200 @ 60 Hz; Text Mode: 720 x 400 @ 70 Hz; Mac Mode: 1152 x 870 @ 75 Hz and 832 x 624 @ 75 Hz |
| Display video input type connector | VGA and DVI-D connectors, HDCP support |
| Audio included | No audio included at platform level |
| Multimedia | Optional HP Silver LCD Speaker Bar: powered directly by the monitor or PC, the Speaker Bar seamlessly attaches to the monitor's lower bezel to bring full audio support to select HP LCD monitors. Features include dual speakers with full sound range and external jack for headphones, part number EE418AA. For more information, refer to the product's Quick Specs. Optional HP LCD Monitor Quick Release: An easy-to-use, VESA-compliant, LCD monitor mounting solution that allows you to quickly and securely attach a flat panel monitor to a variety of stands, brackets, arms or wall mounts, part number EM870AA. For more information, refer to the product's Quick Specs. Optional Kensington Security Lock: combines aircraft-grade steel and Kevlar fiber to securely lock down your monitor and help prevent theft, part number PC766A. For more information, refer to the product's Quick Specs |
| User controls | Menu select, Auto adjust/OSD down, Input select/OSD up, Power Brightness, contrast, positioning, color temperature (6500k, 9300k, custom), individual color control, serial number, display, clock, clock phase, monitor management (power saver, sleep), factory reset |
| Weight (imperial) | 21.8 lb |
| Dimension note (imperial) | with stand |
| Dimension note (metric) | with stand |
| Product dimensions (with stand, imperial) | 565.4 x 301 x 526.8 mm (22.3 x 11.8 x 20.7") |
| Product dimensions (without stand, imperial) | 565.4 x 82.8 x 371.1 mm (22.3 x 3.26 x 14.6") |
| Certification | TCO 03, ISO 13406-2 VDT Guidelines Approval, MPR-II Compliant, CISPR Requirements, VCCI Approvals, MIC (Korean) Requirements, CSA, Australian ACA Approval, “GS” Mark, TUV Approvals, CE Marking, FCC Approval, ENERGY STAR qualified, PC-2201 Certified Microsoft Windows Certification (Microsoft Windows 98, Microsoft Windows 2200, Microsoft Windows XP, and Windows Vista), EPEAT Silver, ENERGY STAR; EPEAT Silver |
| Packaging data | |
| Package weight | 12.8 kg |
| Operational conditions | |
| Operating temperature (T-T) | 5 - 40 °C |
| Storage temperature (T-T) | 20 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 5 - 95% |
| Power | |
| Power consumption (typical) | 85 W |
| Power consumption (standby) | 2 W |
| Ports & interfaces | |
| I/O ports | USB 2.0 Hub: self-powered, four ports (cable included) |
| VGA (D-Sub) ports quantity | 1 |
| DVI-D ports quantity | 1 |
| Display | |
| Display diagonal | 61 cm (24") |
| Display resolution | 1920 x 1200 pixels |
| Touchscreen | No |
| Display brightness (typical) | 400 cd/m² |
| Response time | 5 ms |
| Contrast ratio (typical) | 1000:1 |
| Viewing angle, horizontal | 160° |
| Viewing angle, vertical | 160° |
| Pixel pitch | 0.270 x 0.270 mm |
| Horizontal scan range | 24 - 83 kHz |
| Vertical scan range | 50 - 76 Hz |
| Display scanning frequency | Horizontal Frequency: 24 to 83 kHz (VGA input), 24 to 83 KHz (DVI input for modes with pixel clock less than 165 MHz); Vertical Frequency: 50 to 76 Hz (VGA input), 50 to 76 Hz (DVI input for modes with pixel clock less than 165 MHz) |
| Packaging content | |
| Bundled software | HP Display Assistant is a software utility that enables theft deterrence and allows monitor adjustment, color calibration, and security/asset management using the Display Data Channel Command Interface (DDC/CI) protocol of the connected PC; HP Display LiteSaver allows you to schedule Sleep mode at preset times to help protect the monitor against image retention, drastically lower power consumption and energy costs, and extend the lifespan of the monitor; Pivot Pro software from Portrait Displays, Inc. interacts with your PC's native graphics driver to enable seamless portrait screen redraws with a simple mouse-click or keyboard command. Pivot Pro supports 90-degree portrait and landscape views. Language support is available in English, Japanese, French, German, Spanish, Italian, and Traditional and Simplified Chinese |
| Ergonomics | |
| Panel mounting interface | 100 x 100 mm |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Adjustable height (max) | 13 cm |
| Swivel angle range | -45 - 45° |
| Tilt angle range | -5 - 35° |
| Plug and Play | Yes |
| Display tilt and swivel range | Tilt range: -5° to +35° vertical tilt, swivel range: -45° to +45°, height adjust: 130 mm, pivot rotation |
| Multimedia | |
| Built-in speaker(s) | No |
| Built-in camera | No |
*
*
*
